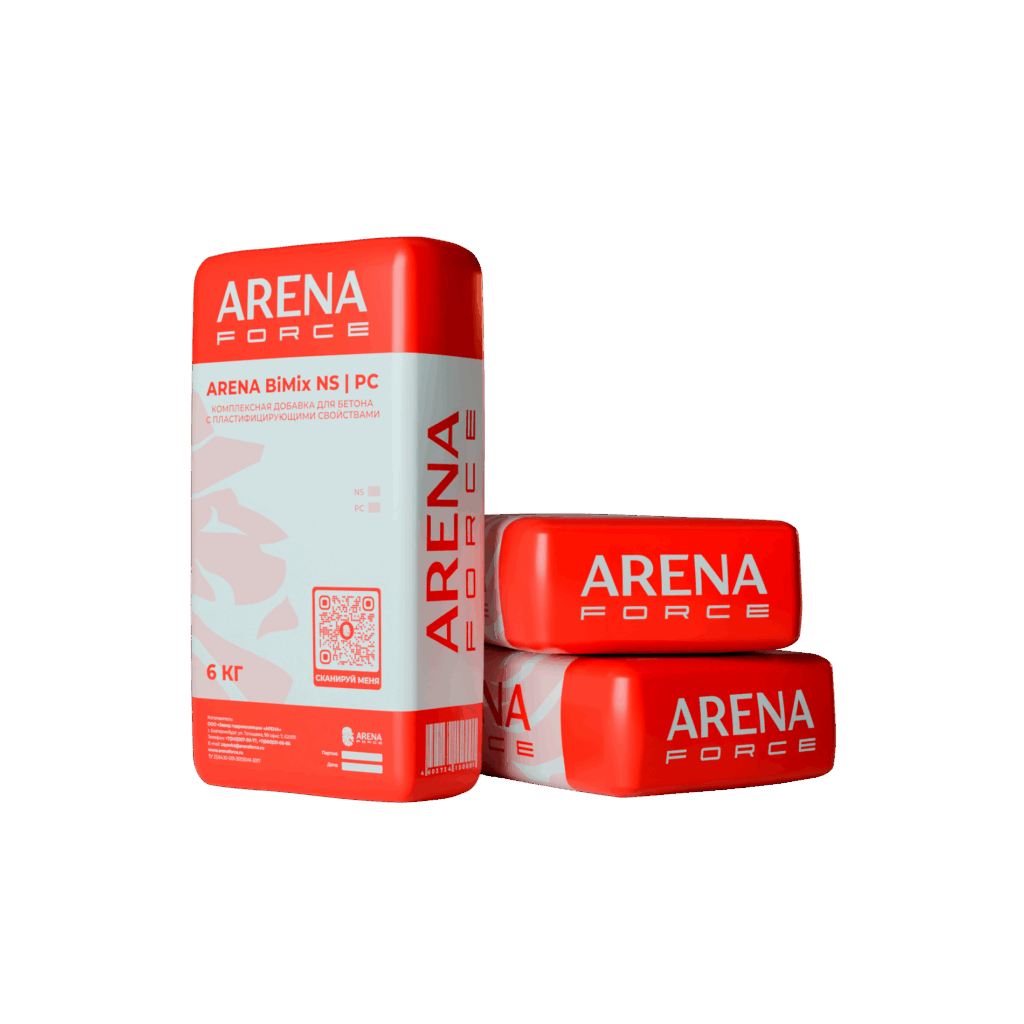

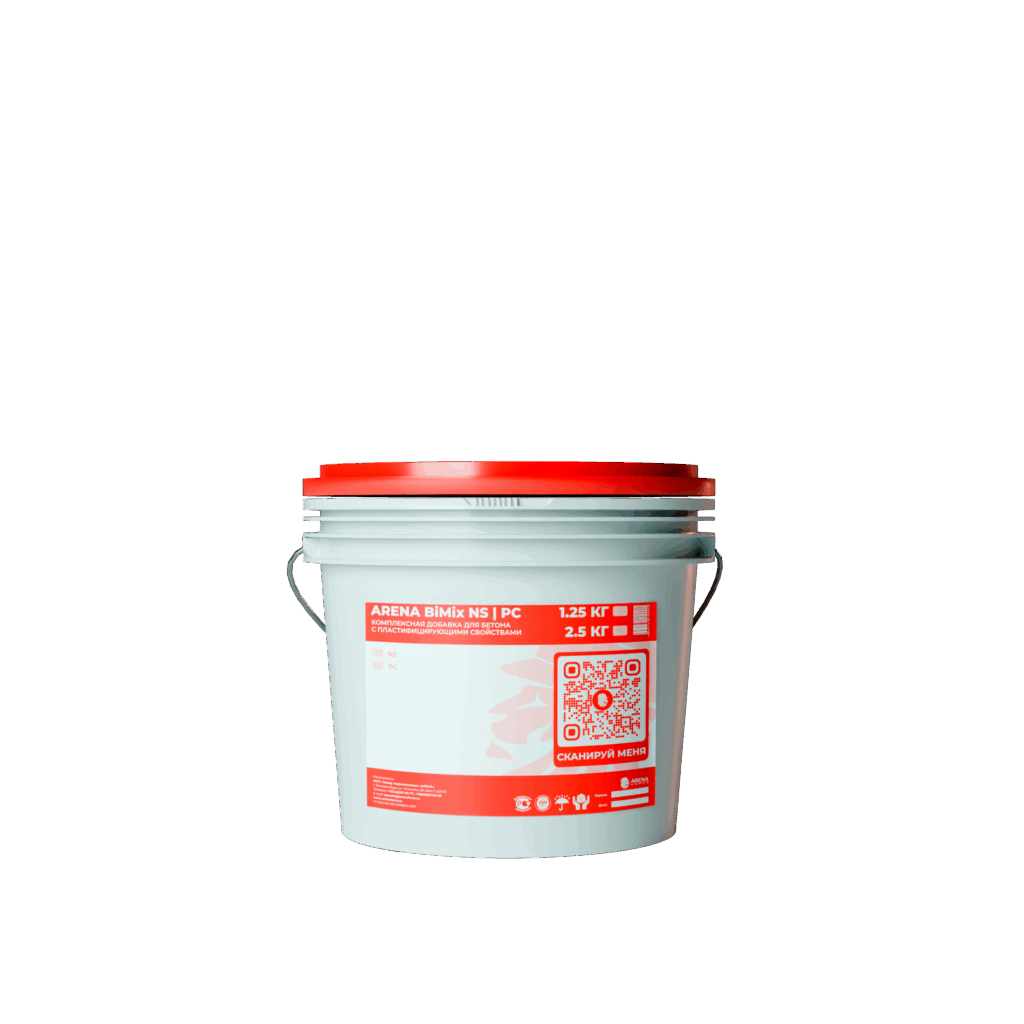

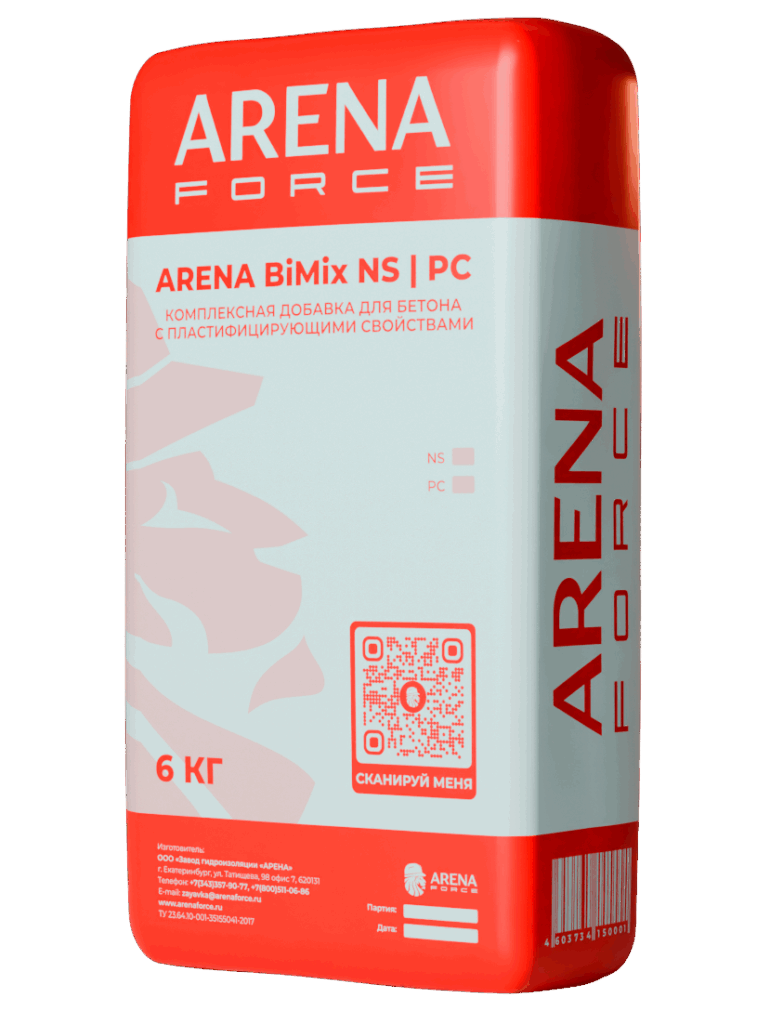

ARENA BiMix NS| PC is a complex additive for concrete with plasticizing properties

Скачать техническую
документацию PDF Области применения

Price on request.

Description:

The complex additive ARENA BiMix NS | PC is designed to increase the strength, mobility and water resistance of concrete. It is a mixture of micro-cement, active mineral fillers and modifying additives.

АРЕNА BiMix NS It is compatible with solutions containing naphthalene sulfate-based plasticizers!

АРЕNА BiMix PC It is compatible with solutions containing polycarboxylate-based plasticizers!
If an additive is introduced into solutions that do not contain plasticizers, it is possible to use any type of additive.

Предназначение Преимущества Технические характеристики Технология применения материала Строительные узлы Гарантии производителя

Предназначение:

Appointment:

- for increased strength and durability;

- to accelerate the setting time and gain strength;

- for the production of cast self-sealing solutions;

- to increase water resistance, frost and corrosion resistance.

Преимущества:

Advantages:

allows the production of concrete for hydraulic engineering construction, with a waterproofness rating up to W20
allows you to obtain concrete with the declared vintage strength for 3 to 7 days.
provides high frost resistance of at least F600
the additive is absolutely safe, it is allowed for use in household and drinking water supply.

Технические характеристики:

TECHNICAL SPECIFICATION
NAME	VALUE
Bulk density	400 ± 100 kg/m³
Consumption of the additive to the weight of cement in the solution	3 – 6 %

CHANGES IN CONCRETE CHARACTERISTICS
NAME	VALUE
Increasing the compressive strength of concrete, at least	30 %
Increased mobility of the concrete mix (depends on the dosage used)	up to П 5
Increasing the water resistance of concrete, at least	4 steps
Increasing the frost resistance of concrete, at least	300 cycles
Timbering time, after	24 hours
Possibility of application for water tanks	Exist

BRAND OF THE SOLUTION	M 200	M 250	M 300	M 350	M 400
Quantity cement in 1 m³ (1000 l), kg	200	250	300	350	400
Quantity ARENA BiMix (6 %), kg	12	15	18	21	24
Quantity ARENA BiMix (4,5 %), kg	9	11	13	16	18
Quantity ARENA BiMix (3 %), kg	6	7,5	9	10,5	12

COMPOSITIONS OF M 300 GRADE CONCRETE	1 DAY	3 DAY	7 DAY	8 DAY	Brand for water resistance / frost resistance
Compressive strength without additives	17,64 MPa	20,72 MPa	23,54 MPa	28,69 MPa	W 6 / F 300
Compressive strength with ARENA BiMix NS \| PS	25,34 MPa	29,12 MPa	32,55 MPa	39,40 MPa	W 14 / F 600

* The technical characteristics shown in the table are obtained from laboratory tests at an air temperature of 20+-2 and a relative humidity of 60%. If the temperature drops, the dynamics of strength gain may slow down.

Технология применения материала

Application technology:

The recommended dosage for obtaining the maximum final characteristics of concrete is 6% by weight of cement in 1 m3 of mortar. The lower the dosage, the smaller the increase in the basic characteristics of concrete. A dosage of less than 3% is not effective, and more than 6% will not provide any additional characteristics. Data on the exact amount of cement in 1 m3 of mortar are present in the mortar passport, they can be obtained from the manufacturer (mortar unit or concrete plant), or use the approximate data from the table below. The additive is added to the concrete mortar in dry form, through the loading funnel of a concrete mixer truck (mortar mixer, concrete mixer). After the addition of the additive to the concrete mortar, it is necessary to mix in a concrete mixer truck, at high speeds, for 10 minutes.

Attention! If a smaller amount of ARENA Mix NS | PC is required for the production of concrete mortar than is contained in 1 package, the contents must first be thoroughly mixed, and only then the required amount must be measured for mixing.

Care of the treated surface:

Moisten at positive temperatures and protect the surface from mechanical influences, negative temperatures and precipitation for at least 4 hours. In hot, dry, windy weather for up to 1 day. To do this, use standard methods of care for cement-containing materials (covering the surface with a film, wet burlap or cardboard, spraying water) or apply special ARENA TopSl film-forming compounds.

Safety:

Use rubber gloves, cotton gloves, respirator, safety glasses, thick cloth overalls, boots. In case of contact with skin or eyes, rinse immediately with water and seek medical advice.

Transportation:

The material is transported by all types of transport in covered vehicles in accordance with the rules of cargo transportation applicable to this type of transport. The applied methods of transportation of mixtures should exclude the possibility of atmospheric precipitation entering them, as well as ensure the safety of packaging from mechanical damage and violation of integrity.

Строительные узлы

Гарантии производителя

Storage conditions and manufacturer's warranty:

Dry mixes should be stored packed, avoiding humidification and ensuring the safety of packaging, in covered dry storage rooms with a relative humidity of no more than 60%. The shelf life of products packed in bags is 12 months, from the date of manufacture indicated on the package.
